SpringBoot+Activiti+Oracle11g实现简单的工作流
1.后台系统
1.1后台技术架构
- 基础框架：Spring Boot 2.1.6.RELEASE
- 工作流引擎：Activiti 6.0
- 持久层框架：Mybatis-plus_3.1.0
- 安全框架：Apache Shiro 1.4.0，Jwt_3.7.0
- 数据库连接池：阿里巴巴Druid 1.1.10
- 多数据源：苞米豆dynamic-datasource 2.5.5
- 日志打印：logback
- 其他：fastjson，poi，Swagger-ui，quartz, lombok（简化代码）等。

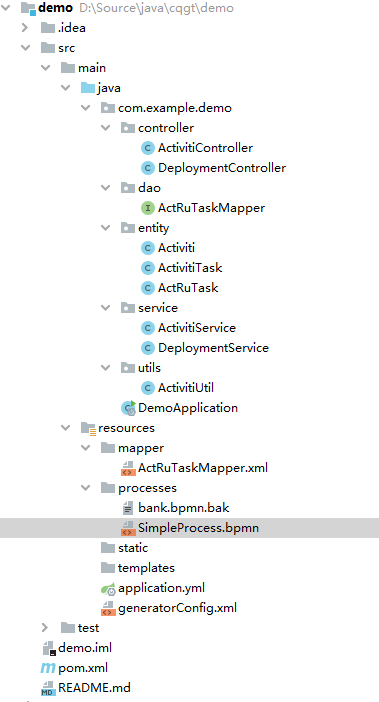

1.2 项目结构
controller：控制器
dao：数据访问层，放置Mapper
entity：实体
service：服务层
utils：工具包
1.3 Maven依赖
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.1.6.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.example</groupId>
<artifactId>demo</artifactId>
<version>0.0.1</version>
<packaging>war</packaging>
<name>demo</name>
<description>测试用项目</description>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
<java.version>1.8</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-tomcat</artifactId>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-devtools</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<configuration>
<source>1.8</source>
<target>1.8</target>
<encoding>UTF-8</encoding>
</configuration>
</plugin>
<!-- 打包跳过测试 -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-surefire-plugin</artifactId>
<configuration>
<skipTests>true</skipTests>
</configuration>
</plugin>
<plugin>
<groupId>org.mybatis.generator</groupId>
<artifactId>mybatis-generator-maven-plugin</artifactId>
<version>1.3.5</version>
<configuration>
<verbose>true</verbose>
<overwrite>true</overwrite>
<configurationFile>src/main/resources/generatorConfig.xml</configurationFile>
</configuration>
<dependencies>
<dependency>
<groupId>com.oracle</groupId>
<artifactId>ojdbc6</artifactId>
<version>11.2.0.3</version>
</dependency>
</dependencies>
</plugin>
</plugins>
</build>
</project>
注：Oracle11g的驱动ojdbc6对SpringBoot的版本有要求，只能使用2.1.X版本的，不支持最新的2.2.X和2.3.X版本。MySQL没有限制。
1.4 应用配置
server:
port: 9090
servlet:
encoding:
force-response: true
spring:
autoconfigure:
exclude: com.alibaba.druid.spring.boot.autoconfigure.DruidDataSourceAutoConfigure
datasource:
druid:
stat-view-servlet:
loginUsername: admin
loginPassword: 123456
dynamic:
druid:
minIdle: 5
maxActive: 20
filters: stat,wall
stat:
merge-sql: true
log-slow-sql: true
datasource:
master:
url: jdbc:oracle:thin:@//192.168.5.131:1521/xe
username: BANKOA
password: Zou.g123
driver-class-name: oracle.jdbc.driver.OracleDriver
activiti:
database-schema-update: true
history-level: full
db-identity-used: false
check-process-definitions: true
process-definition-location-prefix: classpath:/processes/
swagger:
swagger-ui-open: true
mybatis-plus:
mapper-locations: classpath*:mapper/*.xml
global-config:
# 关闭MP3.0自带的banner
banner: false
db-config:
#主键类型 0:"数据库ID自增",1:"该类型为未设置主键类型", 2:"用户输入ID",3:"全局唯一ID (数字类型唯一ID)", 4:"全局唯一ID UUID",5:"字符串全局唯一ID (idWorker 的字符串表示)";
id-type: 4
# 默认数据库表下划线命名
table-underline: true
configuration:
# 这个配置会将执行的sql打印出来，在开发或测试的时候可以用
#log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
# 返回类型为Map,显示null对应的字段
call-setters-on-nulls: true
mybatis-generator的配置generatorConfig.xml，放在resources目录下：
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
"http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
<!-- context 是逆向工程的主要配置信息 -->
<!-- id：起个名字 -->
<!-- targetRuntime：设置生成的文件适用于那个 mybatis 版本 -->
<context id="default" targetRuntime="MyBatis3">
<!--optional,指在创建class时，对注释进行控制-->
<commentGenerator>
<property name="suppressDate" value="true"/>
<!-- 是否去除自动生成的注释 true：是 ： false:否 -->
<property name="suppressAllComments" value="true"/>
</commentGenerator>
<!--jdbc的数据库连接 wg_insert 为数据库名字-->
<jdbcConnection driverClass="oracle.jdbc.driver.OracleDriver"
connectionURL="jdbc:oracle:thin:@//192.168.5.131:1521/xe" userId="BANKOA"
password="Zou.g123"></jdbcConnection>
<!--非必须，类型处理器，在数据库类型和java类型之间的转换控制-->
<javaTypeResolver>
<!-- 默认情况下数据库中的 decimal，bigInt 在 Java 对应是 sql 下的 BigDecimal 类 -->
<!-- 不是 double 和 long 类型 -->
<!-- 使用常用的基本类型代替 sql 包下的引用类型 -->
<property name="forceBigDecimals" value="false"/>
</javaTypeResolver>
<!-- targetPackage：生成的实体类所在的包 -->
<!-- targetProject：生成的实体类所在的硬盘位置 -->
<javaModelGenerator targetPackage="com.example.demo.entity"
targetProject="src/main/java">
<!-- 是否允许子包 -->
<property name="enableSubPackages" value="false"/>
<!-- 是否对modal添加构造函数 -->
<property name="constructorBased" value="true"/>
<!-- 是否清理从数据库中查询出的字符串左右两边的空白字符 -->
<property name="trimStrings" value="true"/>
<!-- 建立modal对象是否不可改变 即生成的modal对象不会有setter方法，只有构造方法 -->
<property name="immutable" value="false"/>
</javaModelGenerator>
<!-- targetPackage 和 targetProject：生成的 mapper 文件的包和位置 -->
<sqlMapGenerator targetPackage="mapper"
targetProject="src/main/resources">
<!-- 针对数据库的一个配置，是否把 schema 作为字包名 -->
<property name="enableSubPackages" value="false"/>
</sqlMapGenerator>
<!-- targetPackage 和 targetProject：生成的 interface 文件的包和位置 -->
<javaClientGenerator type="XMLMAPPER"
targetPackage="com.example.demo.dao" targetProject="src/main/java">
<!-- 针对 oracle 数据库的一个配置，是否把 schema 作为字包名 -->
<property name="enableSubPackages" value="false"/>
</javaClientGenerator>
<!-- tableName是数据库中的表名，domainObjectName是生成的JAVA模型名，后面的参数不用改，要生成更多的表就在下面继续加table标签 -->
<table tableName="ACT_RU_TASK" domainObjectName="ActRuTask"
enableCountByExample="false" enableUpdateByExample="false"
enableDeleteByExample="false" enableSelectByExample="false"
selectByExampleQueryId="false"></table>
</context>
</generatorConfiguration>

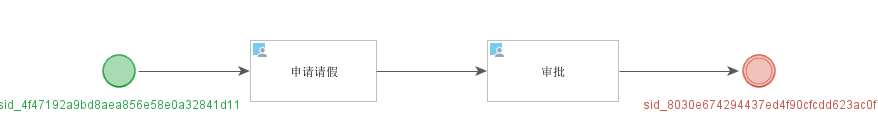

Actitivi流程文件，放在resources/processes目录下。
<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns:activiti="http://activiti.org/bpmn"
xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI"
xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC"
xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI"
typeLanguage="http://www.w3.org/2001/XMLSchema"
expressionLanguage="http://www.w3.org/1999/XPath"
targetNamespace="http://www.activiti.org/processdef">
<process id="SimpleProcess" name="请假流程">
<startEvent id="sid_4f47192a9bd8aea856e58e0a32841d11" name="sid_4f47192a9bd8aea856e58e0a32841d11" activiti:initiator="_wf_default_v_applicant">
</startEvent>
<endEvent id="sid_8030e674294437ed4f90cfcdd623ac0f" name="sid_8030e674294437ed4f90cfcdd623ac0f">
</endEvent>
<userTask id="sid_63815964686e1b9cdb1758d37019b800" name="申请请假" >
</userTask>
<userTask id="sid_95938a38a984f41aa4158f3003da52ec" name="审批" >
</userTask>
<sequenceFlow id="sid_e62e136d87da9abb1df19cf4c5f1da95" name="sid_e62e136d87da9abb1df19cf4c5f1da95" sourceRef="sid_4f47192a9bd8aea856e58e0a32841d11" targetRef="sid_63815964686e1b9cdb1758d37019b800">
</sequenceFlow>
<sequenceFlow id="sid_4fae91900064889aea42e8e496e85923" name="sid_4fae91900064889aea42e8e496e85923" sourceRef="sid_63815964686e1b9cdb1758d37019b800" targetRef="sid_95938a38a984f41aa4158f3003da52ec">
</sequenceFlow>
<sequenceFlow id="sid_c290cd7daa53b374da734bb1428412cf" name="sid_c290cd7daa53b374da734bb1428412cf" sourceRef="sid_95938a38a984f41aa4158f3003da52ec" targetRef="sid_8030e674294437ed4f90cfcdd623ac0f">
</sequenceFlow>
</process>
<bpmndi:BPMNDiagram id="BPMNDiagram_SimpleProcess">
<bpmndi:BPMNPlane bpmnElement="SimpleProcess" id="BPMNPlane_SimpleProcess">
<bpmndi:BPMNShape bpmnElement="sid_4f47192a9bd8aea856e58e0a32841d11" id="BPMNShape_sid_4f47192a9bd8aea856e58e0a32841d11">
<omgdc:Bounds height="40" width="40" x="114" y="224"/>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape bpmnElement="sid_8030e674294437ed4f90cfcdd623ac0f" id="BPMNShape_sid_8030e674294437ed4f90cfcdd623ac0f">
<omgdc:Bounds height="40" width="40" x="754" y="224"/>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape bpmnElement="sid_63815964686e1b9cdb1758d37019b800" id="BPMNShape_sid_63815964686e1b9cdb1758d37019b800">
<omgdc:Bounds height="60" width="125" x="266" y="214"/>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape bpmnElement="sid_95938a38a984f41aa4158f3003da52ec" id="BPMNShape_sid_95938a38a984f41aa4158f3003da52ec">
<omgdc:Bounds height="60" width="130" x="503" y="214"/>
</bpmndi:BPMNShape>
<bpmndi:BPMNEdge bpmnElement="sid_e62e136d87da9abb1df19cf4c5f1da95" id="BPMNEdge_sid_e62e136d87da9abb1df19cf4c5f1da95">
<omgdi:waypoint x="154" y="244"/>
<omgdi:waypoint x="266" y="244"/>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge bpmnElement="sid_4fae91900064889aea42e8e496e85923" id="BPMNEdge_sid_4fae91900064889aea42e8e496e85923">
<omgdi:waypoint x="391" y="244"/>
<omgdi:waypoint x="503" y="244"/>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge bpmnElement="sid_c290cd7daa53b374da734bb1428412cf" id="BPMNEdge_sid_c290cd7daa53b374da734bb1428412cf">
<omgdi:waypoint x="633" y="244"/>
<omgdi:waypoint x="754" y="244"/>
</bpmndi:BPMNEdge>
</bpmndi:BPMNPlane>
</bpmndi:BPMNDiagram>
</definitions>
1.5 代码编写

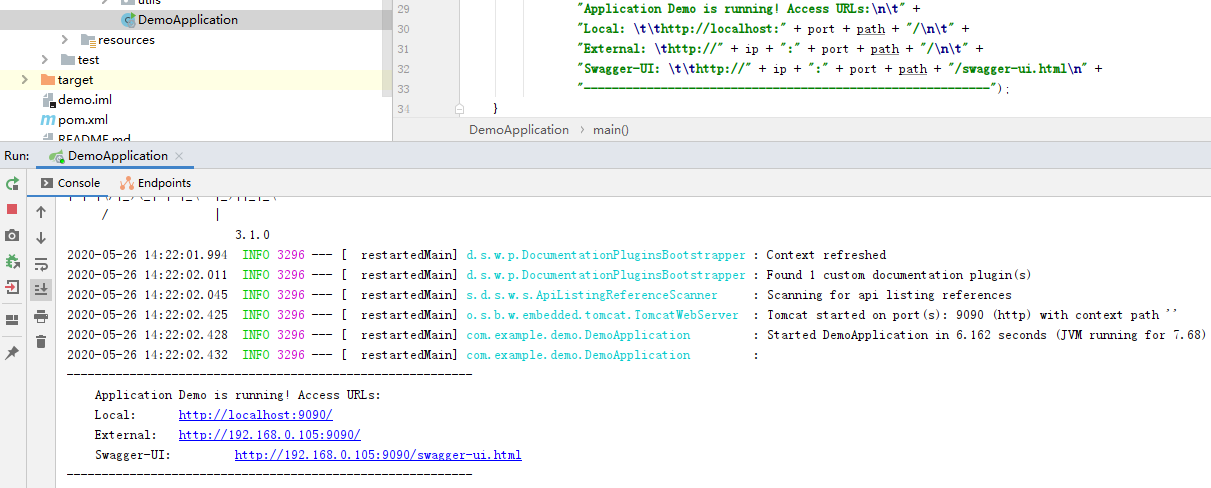

DemoApplication应用启动类：
package com.example.demo;
import lombok.extern.slf4j.Slf4j;
import org.activiti.spring.boot.SecurityAutoConfiguration;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.ConfigurableApplicationContext;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.core.env.Environment;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
import java.net.InetAddress;
import java.net.UnknownHostException;
@Slf4j
@EnableSwagger2
@SpringBootApplication(exclude = SecurityAutoConfiguration.class)
public class DemoApplication {
public static void main(String[] args) throws UnknownHostException {
ConfigurableApplicationContext application = SpringApplication.run(DemoApplication.class, args);
Environment env = application.getEnvironment();
String ip = InetAddress.getLocalHost().getHostAddress();
String port = env.getProperty("server.port");
String path = env.getProperty("server.servlet.context-path");
path = path == null ? "" : path;
log.info("\n----------------------------------------------------------\n\t" +
"Application Demo is running! Access URLs:\n\t" +
"Local: \t\thttp://localhost:" + port + path + "/\n\t" +
"External: \thttp://" + ip + ":" + port + path + "/\n\t" +
"Swagger-UI: \t\thttp://" + ip + ":" + port + path + "/swagger-ui.html\n" +
"----------------------------------------------------------");
}
}
ActivitiController控制类：
package com.example.demo.controller;
import com.example.demo.entity.Activiti;
import com.example.demo.entity.ActivitiTask;
import com.example.demo.service.ActivitiService;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import io.swagger.annotations.ApiParam;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
@RestController
@RequestMapping(value = "/activiti")
@Api(value = "/activiti", tags = {"工作流操作"})
public class ActivitiController {
@Autowired
private ActivitiService activitiService;
@RequestMapping(value = "start", method = RequestMethod.GET)
@ApiOperation(value = "start", httpMethod = "GET", notes = "启动请假流程")
public boolean start(@ApiParam(value = "流程发起用户", required = true) @RequestParam(value = "userName") String userName,
@ApiParam(value = "流程分配用户", required = true) @RequestParam(value = "nextAssignee") String nextAssignee) {
return activitiService.startActiviti(userName, nextAssignee);
}
@RequestMapping(value = "/allRecord", method = RequestMethod.GET)
@ApiOperation(value = "allRecord", httpMethod = "GET", notes = "查询所有流程记录")
public Object allRecord(@ApiParam(value = "用户名", required = true) @RequestParam(value = "userName") String userName) {
Map result = new HashMap();
//我正在申请的假
List<Activiti> list = myActiviti(userName);
result.put("list", list);
//我申请过的假
List<Activiti> list2 = myActivitiRecord(userName);
result.put("list2", list2);
//待我审核的请假
List<ActivitiTask> list3 = myApproval(userName);
result.put("list3", list3);
//我的审核记录
List<Activiti> list4 = myApprovalRecord(userName);
result.put("list4", list4);
return result;
}
//我正在申请的假
@RequestMapping(value = "/myActiviti", method = RequestMethod.GET)
@ApiOperation(value = "myActiviti", httpMethod = "GET", notes = "查询我正在申请的假")
public List<Activiti> myActiviti(@ApiParam(value = "用户名", required = true) @RequestParam(value = "userName") String userName) {
List<Activiti> list = activitiService.myActiviti(userName);
return list;
}
//我申请过的假
@RequestMapping(value = "/myActivitiRecord", method = RequestMethod.GET)
@ApiOperation(value = "myActivitiRecord", httpMethod = "GET", notes = "查询我申请过的假")
public List<Activiti> myActivitiRecord(@ApiParam(value = "用户名", required = true) @RequestParam(value = "userName") String userName) {
List<Activiti> list2 = activitiService.myActivitiRecord(userName);
return list2;
}
//待我审核的请假
@RequestMapping(value = "/myApproval", method = RequestMethod.GET)
@ApiOperation(value = "myApproval", httpMethod = "GET", notes = "查询待我审核的请假")
public List<ActivitiTask> myApproval(@ApiParam(value = "用户名", required = true) @RequestParam(value = "userName") String userName) {
List<ActivitiTask> list3 = activitiService.myApproval(userName);
return list3;
}
//我的审核记录
@RequestMapping(value = "/myApprovalRecord", method = RequestMethod.GET)
@ApiOperation(value = "myApprovalRecord", httpMethod = "GET", notes = "查询我审核过记录")
public List<Activiti> myApprovalRecord(@ApiParam(value = "用户名", required = true) @RequestParam(value = "userName") String userName) {
List<Activiti> list4 = activitiService.myApprovalRecord(userName);
return list4;
}
//审批操作
@RequestMapping(value = "/passApproval", method = RequestMethod.GET)
@ApiOperation(value = "passApproval", httpMethod = "GET", notes = "审批操作")
public String passApproval(@ApiParam(value = "流程ID", required = true) @RequestParam(value = "id") String id,
@ApiParam(value = "审批结果", required = true) @RequestParam(value = "result") String result,
@ApiParam(value = "用户名", required = true) @RequestParam(value = "userName") String userName) {
ActivitiTask activitiTask = new ActivitiTask();
Activiti activiti = new Activiti();
activitiTask.setId(id);
activiti.setResult(result);
activitiTask.setActiviti(activiti);
activitiService.passApproval(userName, activitiTask);
return "0";
}
}
ActivitiService服务类：
package com.example.demo.service;
import com.baomidou.dynamic.datasource.annotation.DS;
import com.example.demo.entity.Activiti;
import com.example.demo.entity.ActivitiTask;
import com.example.demo.utils.ActivitiUtil;
import org.activiti.engine.*;
import org.activiti.engine.history.HistoricProcessInstance;
import org.activiti.engine.history.HistoricVariableInstance;
import org.activiti.engine.runtime.ProcessInstance;
import org.activiti.engine.task.Task;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Service;
import javax.annotation.Resource;
import java.util.*;
/**
* RepositoryService: 流程仓库Service，用于管理流程仓库，例如：部署，删除，读取流程资源
* IdentityService：身份Service，可以管理，查询用户，组之间的关系
* RuntimeService：运行时Service，可以处理所有正在运行状态的流程实例，任务等
* TaskService：任务Service，用于管理，查询任务，例如：签收，办理，指派等
* HistoryService：历史Service，可以查询所有历史数据，例如：流程实例，任务，活动，变量，附件等
* FormService：表单Service，用于读取和流程，任务相关的表单数据
* ManagementService：引擎管理Service，和具体业务无关，主要是可以查询引擎配置，数据库，作业等
* DynamicBpmnService：一个新增的服务，用于动态修改流程中的一些参数信息等，是引擎中的一个辅助的服务
*/
@DS("master")
@Service
public class ActivitiService {
private Logger logger = LoggerFactory.getLogger(ActivitiService.class);
//所运行工作流的名字
private static final String PROCESS_DEFINE_KEY = "SimpleProcess";
@Resource
private RuntimeService runtimeService;
@Resource
private IdentityService identityService;
@Resource
private TaskService taskService;
@Resource
private HistoryService historyService;
@Resource
private RepositoryService repositoryService;
/**
* 开始流程
*
* @param userName
* @return
*/
public Boolean startActiviti(String userName, String nextAssignee) {
logger.info("method startActivityDemo begin....");
/*认证用户的作用是设置流程发起人：在流程开始之前设置，会自动在表ACT_HI_PROCINST 中的START_USER_ID_中设置用户ID
用来设置启动流程的人员ID，引擎会自动把用户ID保存到activiti:initiator中*/
try {
identityService.setAuthenticatedUserId(userName);
// 开始流程
ProcessInstance pi = runtimeService.startProcessInstanceByKey(PROCESS_DEFINE_KEY);
String processId = pi.getId();
logger.info("===============processId===================" + processId);
// 查询当前任务
Task currentTask = taskService.createTaskQuery().processInstanceId(pi.getId()).singleResult();
String taskId1 = currentTask.getId();
logger.info("===============taskId1===================" + taskId1);
// 申明任务人
//taskService.claim(currentTask.getId(), userName);
taskService.setAssignee(taskId1, userName);
Map<String, Object> vars = new HashMap(4);
vars.put("applyUser", userName);
vars.put("days", 1);
vars.put("reason", "病假");
//在此方法中，Vaction 是申请时的具体信息，在完成“申请请假”任务时，可以将这些信息设置成参数。
//完成第一步申请
taskService.complete(currentTask.getId(), vars);
// 到了下一个任务， 应该在此处指派任务由谁来处理
// 重新获取当前任务
Task task = taskService.createTaskQuery().processInstanceId(processId).singleResult();
String taskId2 = task.getId();
logger.info("===============taskId2===================" + taskId2);
taskService.setAssignee(taskId2, nextAssignee);
} catch (Exception e) {
e.printStackTrace();
}
return true;
}
public List<Activiti> myActiviti(String userName) {
List<ProcessInstance> instanceList = runtimeService.createProcessInstanceQuery().startedBy(userName).list();
List<Activiti> activitisList = new ArrayList();
for (ProcessInstance instance : instanceList) {
Activiti activiti = getActiviti(instance);
activitisList.add(activiti);
}
return activitisList;
}
/**
* 查询需要自己审批
*
* @param userName
* @return
*/
public List<ActivitiTask> myApproval(String userName) {
List<Task> taskList = taskService.createTaskQuery().taskAssignee(userName).orderByTaskCreateTime().desc().list();
List<ActivitiTask> activitiTaskList = new ArrayList();
for (Task task : taskList) {
ActivitiTask activitiTask = new ActivitiTask();
activitiTask.setId(task.getId());
activitiTask.setName(task.getName());
activitiTask.setCreateTime(task.getCreateTime());
String instanceId = task.getProcessInstanceId();
ProcessInstance instance = runtimeService.createProcessInstanceQuery().processInstanceId(instanceId).singleResult();
Activiti activiti = getActiviti(instance);
activitiTask.setActiviti(activiti);
activitiTaskList.add(activitiTask);
}
return activitiTaskList;
}
private Activiti getActiviti(ProcessInstance instance) {
Integer days = runtimeService.getVariable(instance.getId(), "days", Integer.class);
String reason = runtimeService.getVariable(instance.getId(), "reason", String.class);
Activiti activiti = new Activiti();
activiti.setApplyUser(instance.getStartUserId());
activiti.setDays(days);
activiti.setReason(reason);
Date startTime = instance.getStartTime(); // activiti 6 才有
activiti.setApplyTime(startTime);
activiti.setApplyStatus(instance.isEnded() ? "申请结束" : "等待审批");
return activiti;
}
/**
* 审批操作
*
* @param userName
* @param activitiTask
* @return 同理，result是审批的结果，也是在完成审批任务时需要传入的参数；taskId是刚才老板查询到的当前需要自己完成的审批任务ID。
* （如果流程在这里设置分支，可以通过判断result的值来跳转到不同的任务）
**/
public Boolean passApproval(String userName, ActivitiTask activitiTask) {
String taskId = activitiTask.getId();
String result = activitiTask.getActiviti().getResult();
Map<String, Object> vars = new HashMap();
vars.put("result", result);
vars.put("auditor", userName);
vars.put("auditTime", new Date());
//taskService.claim(taskId, userName);
taskService.setAssignee(taskId, userName);
taskService.complete(taskId, vars);
return true;
}
/**
* 查询已完成的请假记录
* 由于已完成的请假在数据库runtime表中查不到（runtime表只保存正在进行的流程示例信息），所以需要在history表中查询。
*
* @param userName
* @return
*/
public List<Activiti> myActivitiRecord(String userName) {
List<HistoricProcessInstance> hisProInstance = historyService.createHistoricProcessInstanceQuery()
.processDefinitionKey(PROCESS_DEFINE_KEY).startedBy(userName).finished()
.orderByProcessInstanceEndTime().desc().list();
List<Activiti> activitiList = new ArrayList();
for (HistoricProcessInstance hisInstance : hisProInstance) {
Activiti activiti = new Activiti();
activiti.setApplyUser(hisInstance.getStartUserId());
activiti.setApplyTime(hisInstance.getStartTime());
activiti.setApplyStatus("申请结束");
List<HistoricVariableInstance> varInstanceList = historyService.createHistoricVariableInstanceQuery()
.processInstanceId(hisInstance.getId()).list();
ActivitiUtil.setVars(activiti, varInstanceList);
activitiList.add(activiti);
}
return activitiList;
}
/**
* 我审批的记录列表
*
* @param userName
* @return
*/
public List<Activiti> myApprovalRecord(String userName) {
List<HistoricProcessInstance> hisProInstance = historyService.createHistoricProcessInstanceQuery()
.processDefinitionKey(PROCESS_DEFINE_KEY).involvedUser(userName).finished()
.orderByProcessInstanceEndTime().desc().list();
List<Activiti> activitiList = new ArrayList();
for (HistoricProcessInstance hisInstance : hisProInstance) {
Activiti activiti = new Activiti();
activiti.setApplyUser(hisInstance.getStartUserId());
activiti.setApplyStatus("申请结束");
activiti.setApplyTime(hisInstance.getStartTime());
List<HistoricVariableInstance> varInstanceList = historyService.createHistoricVariableInstanceQuery()
.processInstanceId(hisInstance.getId()).list();
ActivitiUtil.setVars(activiti, varInstanceList);
activitiList.add(activiti);
}
return activitiList;
}
}
ActivitiUtil工具类：
package com.example.demo.utils;
import org.activiti.engine.history.HistoricVariableInstance;
import java.io.ByteArrayOutputStream;
import java.io.InputStream;
import java.lang.reflect.Field;
import java.util.List;
public class ActivitiUtil {
public static String text(InputStream fin) {
byte[] buf = new byte[512];
ByteArrayOutputStream bout = new ByteArrayOutputStream();
try {
do {
int size = fin.read(buf);
if (size <= 0) {
break;
}
bout.write(buf, 0, size);
} while (true);
String text = new String(bout.toByteArray(), "UTF-8");
bout.close();
return text;
} catch (Exception ex) {
throw new RuntimeException("convert error");
}
}
/**
* 将历史参数列表设置到实体中去
* @param entity 实体
* @param varInstanceList 历史参数列表
*/
public static <T> void setVars(T entity, List<HistoricVariableInstance> varInstanceList) {
Class<?> tClass = entity.getClass();
try {
for (HistoricVariableInstance varInstance : varInstanceList) {
Field field = tClass.getDeclaredField(varInstance.getVariableName());
if (field == null) {
continue;
}
field.setAccessible(true);
field.set(entity, varInstance.getValue());
}
} catch (Exception e) {
e.printStackTrace();
}
}
}
Activiti实体类：
package com.example.demo.entity;
import java.io.Serializable;
import java.util.Date;
public class Activiti implements Serializable{
/**
* 申请人
*/
private String applyUser;
private int days;
private String reason;
private Date applyTime;
private String applyStatus;
/**
* 审核人
*/
private String auditor;
private String result;
private Date auditTime;
public String getApplyUser() {
return applyUser;
}
public void setApplyUser(String applyUser) {
this.applyUser = applyUser;
}
public int getDays() {
return days;
}
public void setDays(int days) {
this.days = days;
}
public String getReason() {
return reason;
}
public void setReason(String reason) {
this.reason = reason;
}
public Date getApplyTime() {
return applyTime;
}
public void setApplyTime(Date applyTime) {
this.applyTime = applyTime;
}
public String getApplyStatus() {
return applyStatus;
}
public void setApplyStatus(String applyStatus) {
this.applyStatus = applyStatus;
}
public String getAuditor() {
return auditor;
}
public void setAuditor(String auditor) {
this.auditor = auditor;
}
public String getResult() {
return result;
}
public void setResult(String result) {
this.result = result;
}
public Date getAuditTime() {
return auditTime;
}
public void setAuditTime(Date auditTime) {
this.auditTime = auditTime;
}
}
ActivitiTask实体类：
package com.example.demo.entity;
import java.util.Date;
public class ActivitiTask {
private String id;
private String name;
private Activiti activiti;
private Date createTime;
public String getId() {
return id;
}
public void setId(String id) {
this.id = id;
}
public Date getCreateTime() {
return createTime;
}
public void setCreateTime(Date createTime) {
this.createTime = createTime;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public Activiti getActiviti() {
return activiti;
}
public void setActiviti(Activiti activiti) {
this.activiti = activiti;
}
}

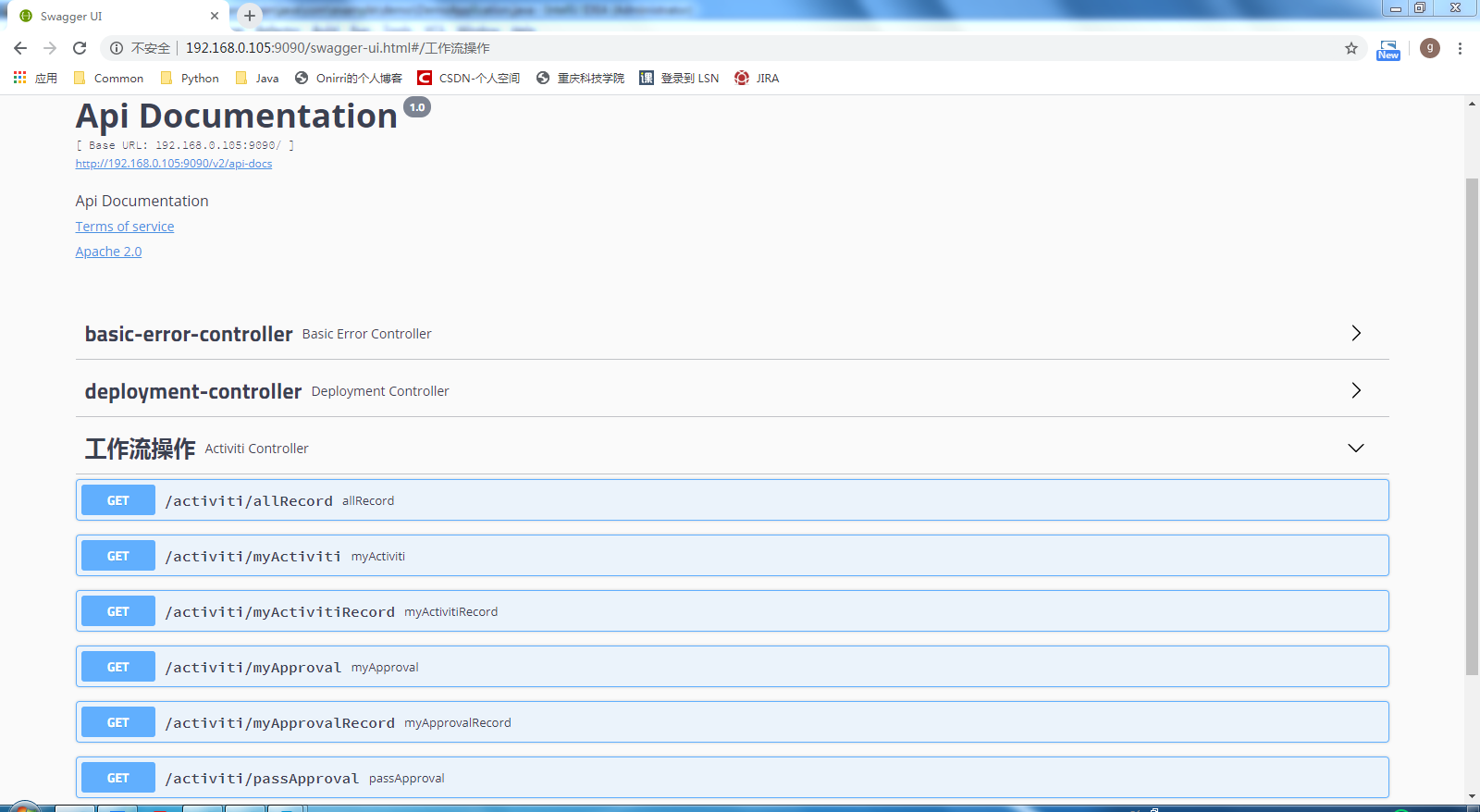

1.6 测试
可以在IDE中直接运行DemoApplication启动类：
